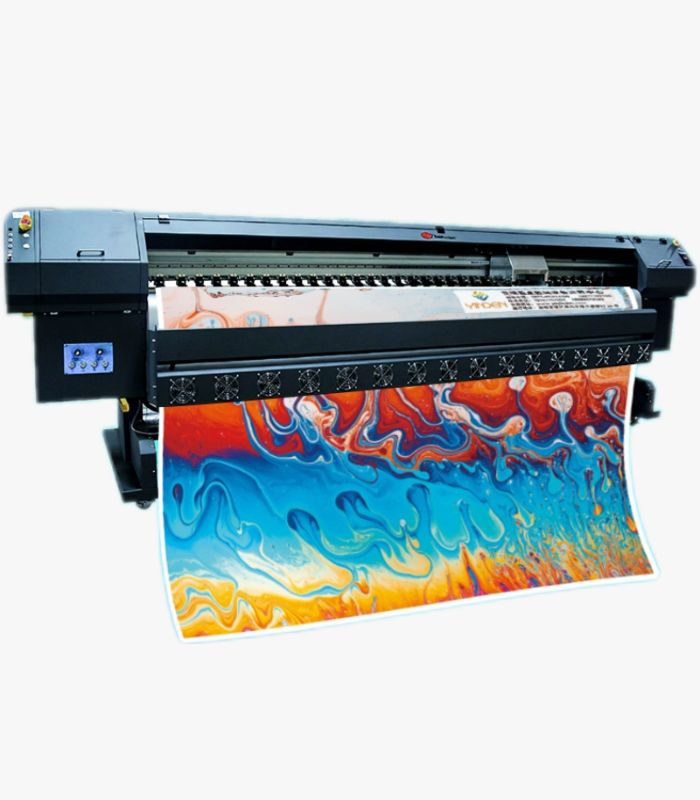

AMO Solvent Inkjet Printer AM3208K12i 3.2meters with 8 Konica 512i Printheads

AMO Solvent Inkjet Printer AM3208K12i – 3.2m Wide Format with 8 Konica 512i Printheads

Key Features

1. Printhead Heating & Intelligent Ink Circulation
The printhead plate is equipped with a heating system to ensure stable ink flow across varying ambient temperatures. An integrated ink circulation mechanism prevents pigment sedimentation inside the printhead, effectively reducing nozzle clogging and ensuring smooth, uninterrupted operation.

2. Transparent Secondary Ink Tank & Independent Color Pressure Control

• The fully transparent ink tank design allows for clear visibility of ink levels and flow, simplifying troubleshooting and significantly reducing maintenance time.

• Independent pressure control for each color channel enhances ink delivery precision and optimizes overall ink consumption efficiency.

3. Motorized Pressure Roller System & Silent Linear Guide Technology

• The motorized pressure rollers can be adjusted in real-time during printing to prevent media wrinkling without pausing production, minimizing material waste.

• High-speed silent guide rails provide smoother printhead motion, increasing printing accuracy while reducing noise and mechanical wear—extending the system’s lifespan.

4. Adjustable Vacuum Platform & Smart Roller Speed Control

• The adjustable vacuum platform enables fine-tuning of airflow, ensuring smooth feeding for materials of different thicknesses by resolving over-suction issues.

• The intelligent roller speed control system improves compatibility with various media types during both feeding and collection, ensuring steady and consistent operation.

5. High-Efficiency Heating & Drying System

• Segmented heating zones ensure thorough ink absorption and enhance color fastness.

• A proprietary thermal air circulation system combined with a cold air diversion mechanism enables rapid post-drying cooling, resulting in sharper image details and glossier finishes.

Technical Specifications

• Maximum Print Width: 3200mm

• Printheads: 8 Konica Minolta KM512i

• Print Speeds:

  • 2 Pass (480×360 dpi): 240 ㎡/h

  • 3 Pass (480×540 dpi): 140 ㎡/h

  • 4 Pass (480×720 dpi): 105 ㎡/h

• Supported Media:
  Compatible with a wide range of soft materials including soft ceiling film, wallpaper, fabric, polyester cloth, backlit film, photo paper, canvas, flex banner, vinyl, mesh, one-way vision film, coated flex banner, and more.

• RIP Software: Professional color management software included

• Power Supply: AC220V ±10%, 50–60Hz, 4500W

• Packing Dimensions:

  • Printer: L5300 × W1180 × H1700mm

  • Packing: L5600 × W1250 × H2100mm

• Net / Gross Weight: 1500kg / 1750kg
