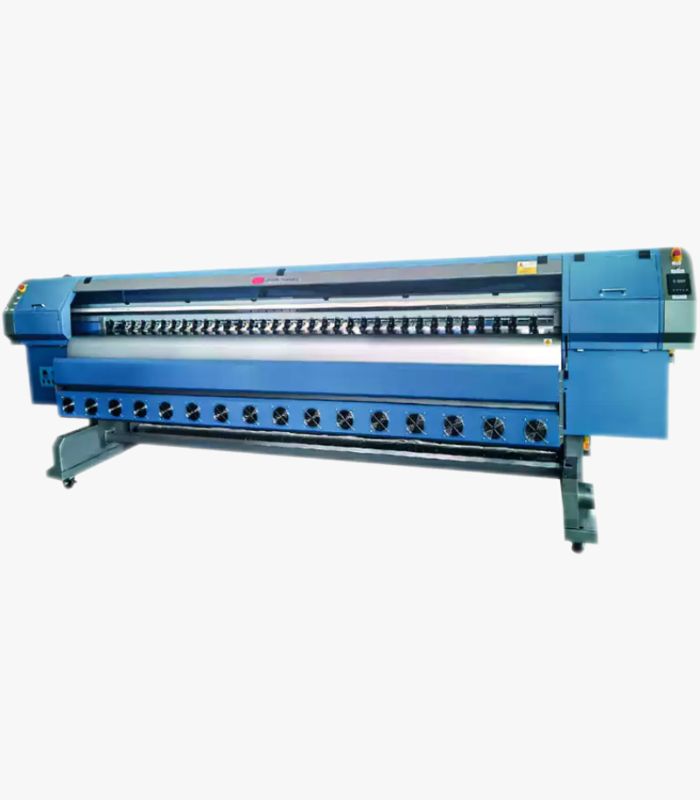

AMO Solvent Inkjet Printer AM3208K24i 3.2meters with 8 Konica 1024i Printheads

AMO Solvent Inkjet Printer AM3208K24i – 3.2m High-Speed Format with 8 Konica 1024i Printheads

Key Features

1. Printhead Heating & Advanced Ink Circulation
The printhead plate features a built-in heating system that stabilizes ink viscosity in varying environmental temperatures, ensuring consistent ink flow. The integrated ink circulation system prevents pigment sedimentation, minimizing nozzle clogging and enhancing long-term printing performance.

2. Transparent Secondary Ink Tank & Independent Color Pressure Control

• The fully transparent ink tank design allows for real-time ink level monitoring and easier maintenance, reducing downtime.

• Independent color pressure regulators optimize ink delivery for each channel, improving print stability and reducing ink consumption.

3. Motorized Pressure Roller System & Precision Silent Guide Rails

• Real-time adjustable pressure rollers prevent media wrinkling without halting the printing process, reducing material waste and improving efficiency.

• High-precision silent guide rails ensure smooth, stable printhead movement, enhancing image sharpness while minimizing noise and mechanical wear.

4. Adjustable Vacuum Platform & Intelligent Roller Speed Modulation

• Adjustable vacuum airflow allows operators to fine-tune suction strength to match different media types and thicknesses, ensuring accurate material feeding.

• The dynamic roller control system adjusts feeding and take-up speeds for stable operation across a wide range of flexible media.

5. High-Power Heating & Rapid Drying System

• Zoned heating modules boost ink absorption and color durability.

• A built-in thermal air circulation chamber with a cold air diversion design ensures quick drying and cooling, delivering crisp image details and brilliant finishes.

Technical Specifications

• Maximum Print Width: 3200mm

• Printheads: 8 Konica Minolta KM1024i

• Print Speeds:

  • 1 Pass (360×360 dpi): 600 ㎡/h

  • 1 Pass (480×360 dpi): 480 ㎡/h

  • 2 Pass (360×720 dpi): 280 ㎡/h

  • 2 Pass (480×720 dpi): 240 ㎡/h

• Supported Media:
  Compatible with a wide range of soft materials, including ceiling soft film, wallpaper, polyester cloth, backlit film, photo paper, canvas, flex banner, vinyl, mesh, one-way vision film, coated flex banner, and more.

• RIP Software: Professional color management RIP software included

• Power Supply: AC220V ±10%, 50–60Hz, 4500W

• Packing Dimensions:

  • Printer Size: L5300 × W1180 × H1700mm

  • Packing Size: L5600 × W1250 × H2100mm

• Net / Gross Weight: 1500kg / 1750kg
