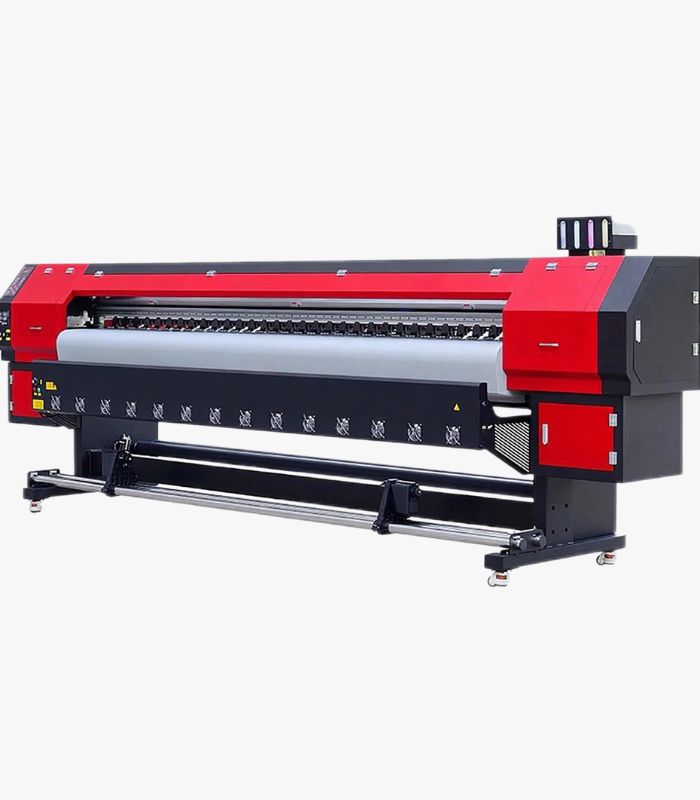

AMO Solvent Inkjet Printer AM5204K12i 5meters with 4 Konica 512i Printheads
$24,000.00
AMO Solvent Inkjet Printer AM5204K12i – 5m Super Wide Format with 4 Konica 512i Printheads
Key Features
1. Printhead Heating & Intelligent Ink Circulation
The integrated heating system on the printhead plate ensures consistent ink flow under varying temperature conditions. Built-in ink circulation effectively prevents pigment sedimentation, reducing nozzle clogging and extending printhead life for stable, high-quality output.
2. Transparent Secondary Ink Tank & Independent Color Pressure Control
-
Transparent secondary ink tanks allow for clear visual inspection of ink status, making maintenance easier and faster.
-
Each color channel features an independent pressure control mechanism that improves ink delivery accuracy and minimizes ink waste.
3. Motorized Pressure Roller System & Silent Guide Rails
-
The single motorized pressure roller system allows real-time adjustment of individual rollers during printing, preventing media wrinkling and ensuring uninterrupted production.
-
High-speed, low-noise linear guide rails enhance printhead movement stability and accuracy while reducing mechanical wear and noise.
4. Adjustable Vacuum Platform & Smart Roller Speed Control
-
Manual vacuum airflow adjustment enables precise feeding of media with different thicknesses, solving issues related to excessive suction.
-
Intelligent roller speed regulation improves feeding and collection performance across a wide variety of materials.
5. High-Efficiency Heating & Drying System
-
Divided heating zones improve ink absorption and color fastness.
-
A proprietary thermal air circulation chamber, combined with a cold air diversion system, ensures rapid drying and cooling—delivering sharper image details and a glossier print finish.
Technical Specifications
-
Maximum Print Width: 5000mm
-
Printheads: 4 Konica Minolta KM512i
-
Print Speeds:
-
2 Pass (480×360 dpi): 120 ㎡/h
-
3 Pass (480×540 dpi): 70 ㎡/h
-
4 Pass (480×720 dpi): 52 ㎡/h
-
-
Supported Media:
Compatible with a wide range of soft materials including ceiling soft film, wallpaper, cloth, polyester fabric, backlit film, photo paper, canvas, flex banner, vinyl, mesh, one-way vision film, coated flex banner, and more. -
RIP Software: Professional color management RIP software included
-
Power Supply: AC220V ±10%, 50–60Hz, 4500W
-
Machine / Packing Dimensions:
-
Printer Size: L7430 × W1520 × H1700mm
-
Packing Size: L7500 × W1600 × H1750mm
-
-
Net / Gross Weight: 3200kg / 3500kg
