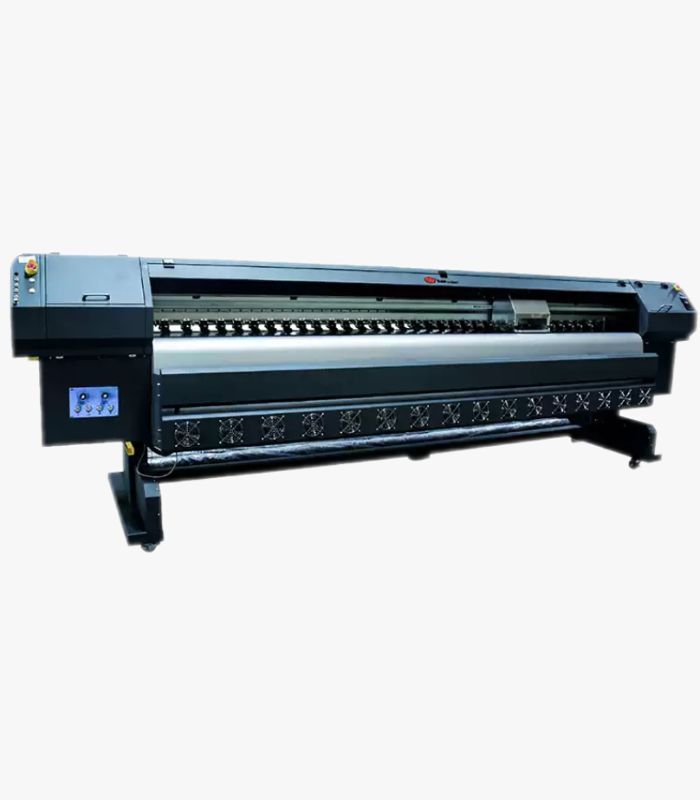

AMO Solvent Inkjet Printer AM5208K24i 5meters with 8 Konica 1024i Printheads

AMO Solvent Inkjet Printer AM5208K24i – 5m Ultra-Wide Format with 8 Konica 1024i Industrial Printheads

Top Features

1. Printhead Heating & Intelligent Ink Circulation
The printhead plate is equipped with integrated heating, ensuring smooth and stable ink flow even under fluctuating temperatures. Built-in ink circulation prevents pigment sedimentation, reduces nozzle clogging, and extends the lifespan of the printheads.

2. Transparent Secondary Ink Tank & Independent Pressure System

• The fully transparent ink tanks offer a clear visual of ink levels, making inspection and troubleshooting faster and more efficient.

• Independent pressure control for each color ensures precise ink delivery, improving printing stability and minimizing ink waste.

3. Motorized Pressure Roller System & Silent Precision Rails

• Motorized pressure rollers can be adjusted in real time during printing, helping eliminate material wrinkling without interrupting production—maximizing material usage and minimizing waste.

• High-speed silent guide rails ensure accurate printhead movement, enhancing image quality while reducing mechanical noise and wear.

4. Adjustable Vacuum Table & Smart Roller Speed Control

• Adjustable vacuum airflow resolves feeding issues caused by excessive suction, ensuring smooth feeding for materials of various thicknesses.

• Roller power control enhances adaptability during media feeding and take-up, ensuring consistent performance across diverse media types.

5. Advanced Heating & Drying System

• Segmented heating zones improve ink absorption and color fastness.

• The built-in thermal air circulation chamber with a cold air diversion system enables rapid drying and cooling, delivering sharper details and a glossy surface finish.

Technical Specifications

• Maximum Print Width: 5000mm

• Printheads: 8 Konica Minolta KM1024i

• Print Speeds:

  • 2 Pass (480×360 dpi): 260 ㎡/h

  • 3 Pass (480×540 dpi): 180 ㎡/h

  • 4 Pass (480×720 dpi): 130 ㎡/h

• Supported Media:
  Compatible with all types of soft materials including ceiling soft film, wallpaper, cloth, polyester fabric, backlit film, photo paper, canvas, flex banner, vinyl, mesh, one-way vision film, coated flex banner, and more.

• RIP Software: Professional color management RIP software included

• Power Requirements: AC220V ±10%, 50–60Hz, 4500W

• Machine / Packing Dimensions:

  • Printer Size: L7430 × W1520 × H1700mm

  • Packing Size: L7500 × W1600 × H1750mm

• Net / Gross Weight: 3200kg / 3500kg
