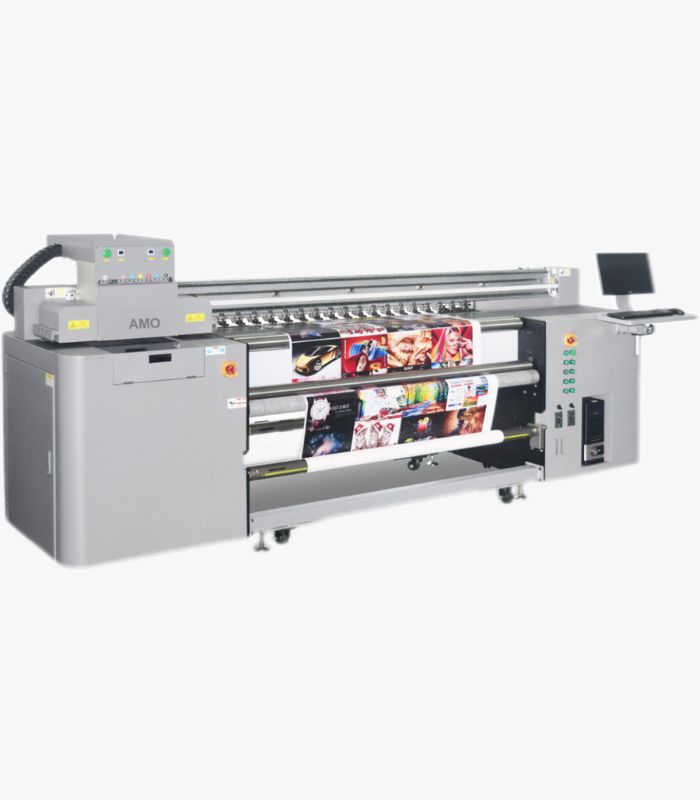

AMO UV Inkjet Printer AM3200UV8G6-EL for 3.2meters Soft and Elastic Film with 8 Ricoh GEN6 Printheads
$27,300.00
AMO UV Inkjet Printer AM3200UV8G6-EL
*3.2m High-Speed Industrial Printer for Elastic Materials with 8 Ricoh GEN6 Printheads*
Ultimate Production Solution for Stretchable Materials
Key Highlights:
-
8 Ricoh GEN6 Printheads – Double the productivity of 4-head models
-
90m²/h Maximum Speed – Industry-leading output for elastic materials
-
Smart Material Handling – Patented tension control system prevents deformation
Cutting-Edge Technology:
-
Dual-Circulation Printhead System
-
Active heating (20-45°C adjustable) with dual-ink circulation
-
Automatic nozzle health monitoring and recovery
-
Ricoh GEN6 7pl droplet technology for photorealistic quality
-
-
Intelligent Media Control
-
Dynamic pressure roller adjustment (±0.5mm precision)
-
Multi-stage vacuum control (8 adjustable zones)
-
Ultra-quiet linear guides (<50dB) with auto-lubrication
-
-
Advanced Ink Delivery
-
Smart transparent ink tanks with RFID authentication
-
Per-channel pressure regulation (0.01psi resolution)
-
Ink viscosity monitoring system
-
-
Professional Drying System
-
8-zone IR heating with real-time temperature feedback
-
Dual cooling system (air + water circulation)
-
Gloss control technology (±20% adjustable)
-
Technical Specifications:
| Category | Specification |
|---|---|
| Print Width | 3200mm |
| Printheads | 8 × Ricoh GEN6 (1200dpi) |
| Print Speed | 90m²/h (Production), 50m²/h (High-Quality) |
| Media Thickness | 0.03-8mm |
| Ink System | CMYKLcLm+White (Optional) |
| Resolution | 600-2400dpi |
| Power | 220V±10%, 50/60Hz, 5.2kW |
Material Compatibility:
-
Specialty Elastic Materials: PE/PP films, stretch fabrics (up to 300% elongation)
-
Standard Media: Backlit films, canvas, wallpaper (50-800g/m²)
-
Roll Handling: Max 80kg roll weight, 200mm core diameter
Performance Advantages:
✓ 2.5× Higher Productivity vs. 4-head models
✓ <1.5% Media Waste with smart tension control
✓ 30% Lower Ink Consumption with GEN6 efficiency
✓ 24/7 Readiness – <15min warm-up time
Included Package:
-
Main printer unit with 10″ touch control
-
Ricoh GEN6 printhead set (8 units)
-
Advanced ColorMaster RIP software
-
Integrated color spectrophotometer
-
Maintenance toolkit and spare parts
Recommended For:
-
High-volume elastic fabric printing
-
Premium soft signage production
-
Technical textiles manufacturing
-
Specialty packaging applications
Note: For rigid/non-stretch materials, our AM3200UV8G6-ES model offers better cost efficiency with identical speed performance.
